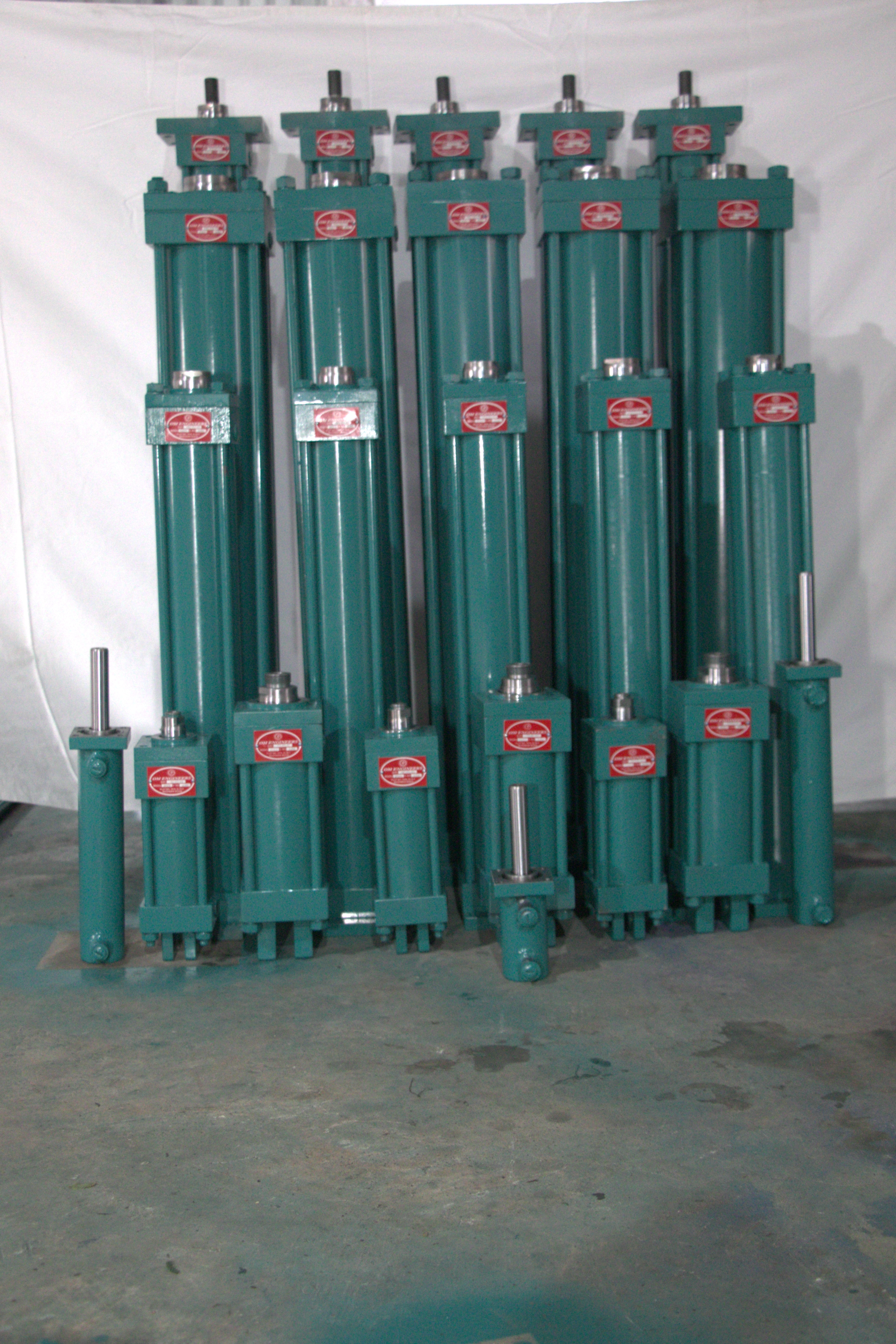

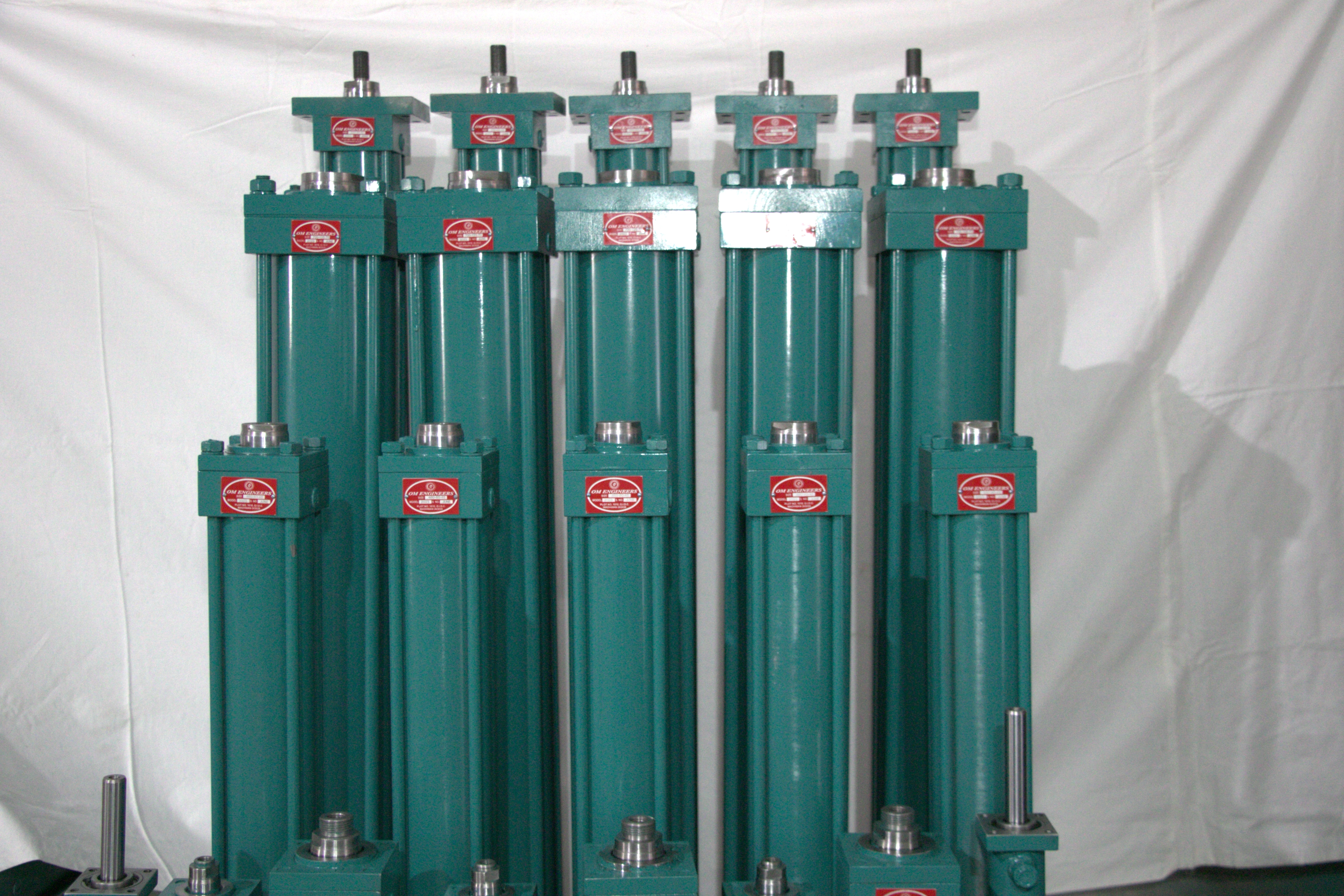

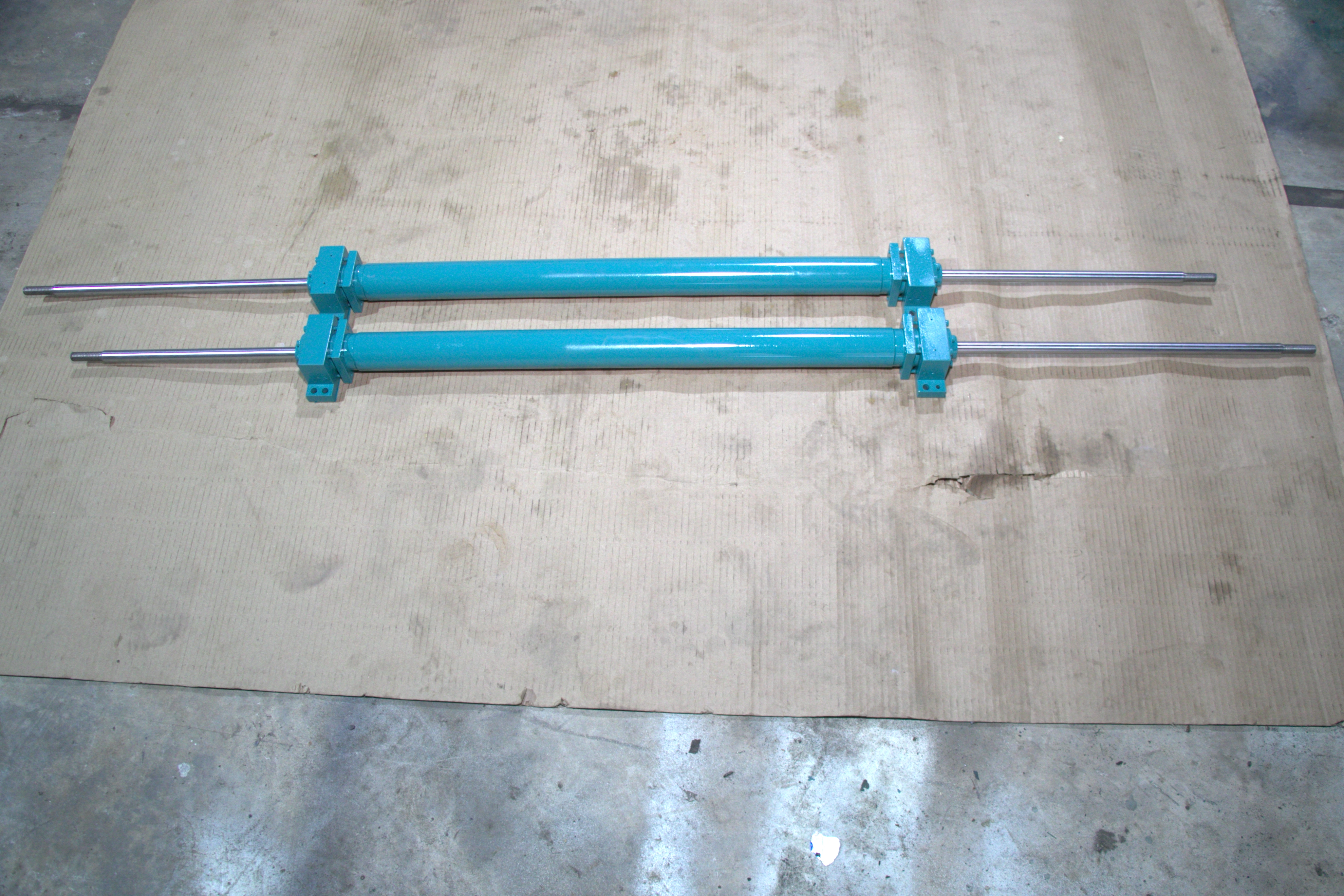

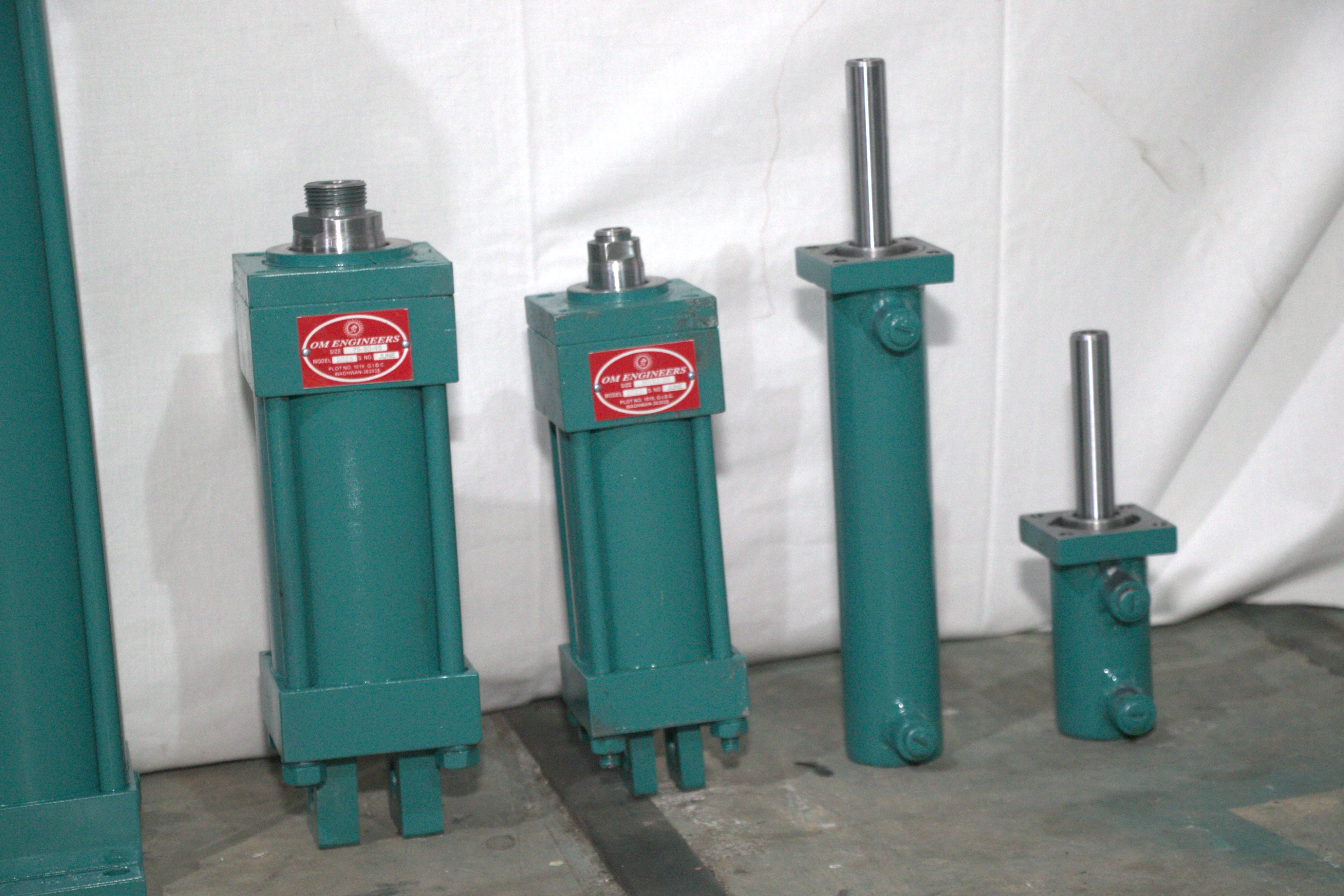

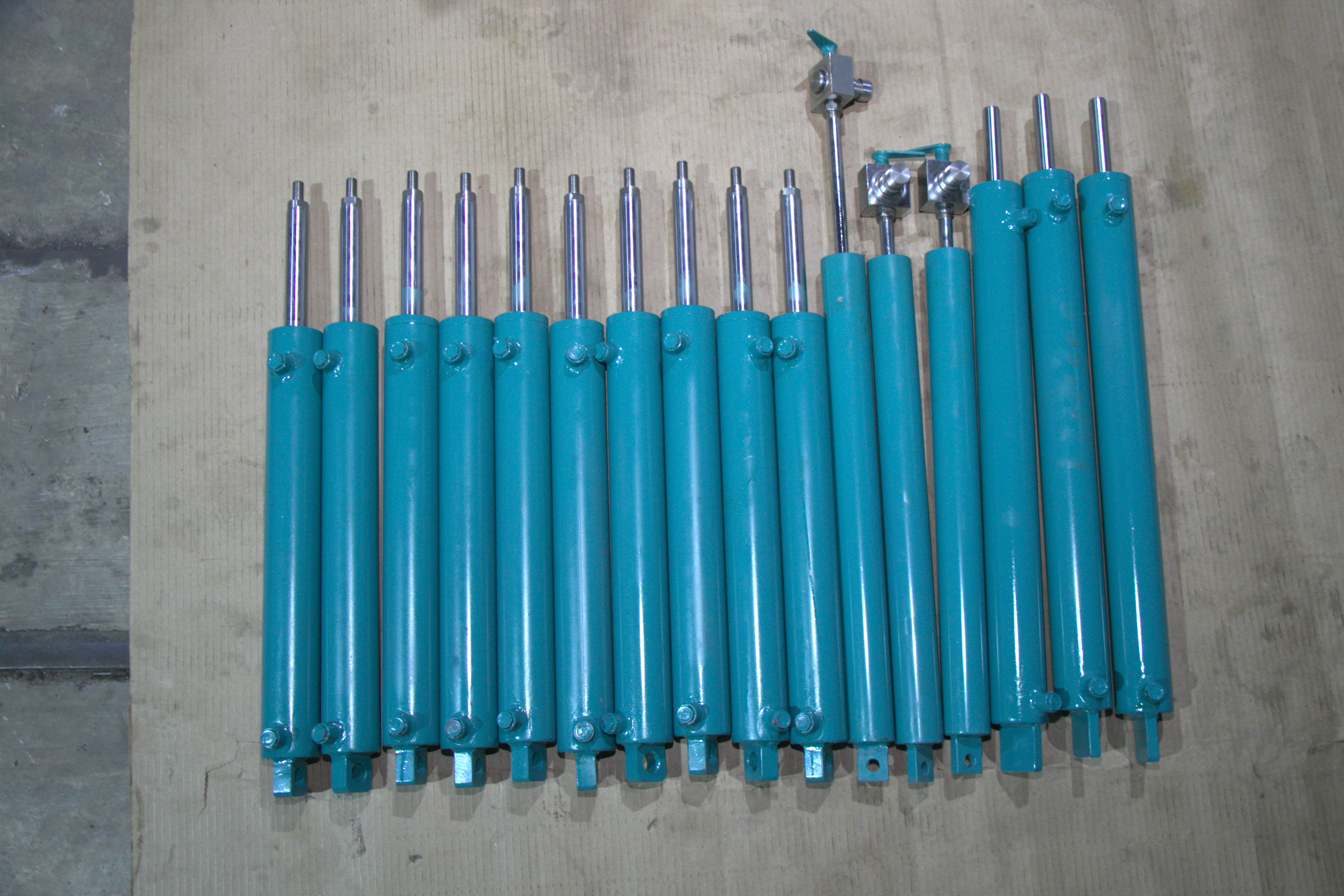

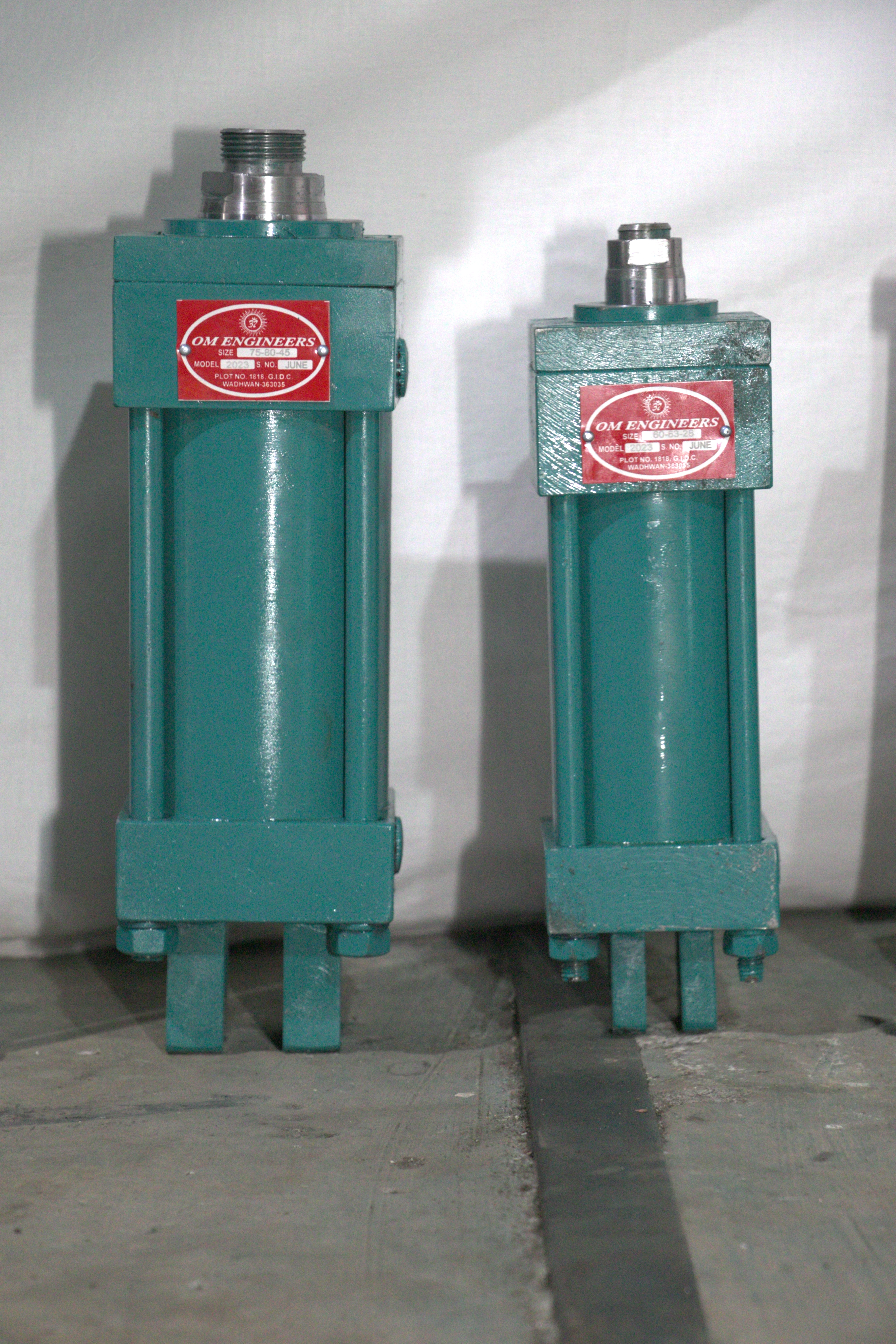

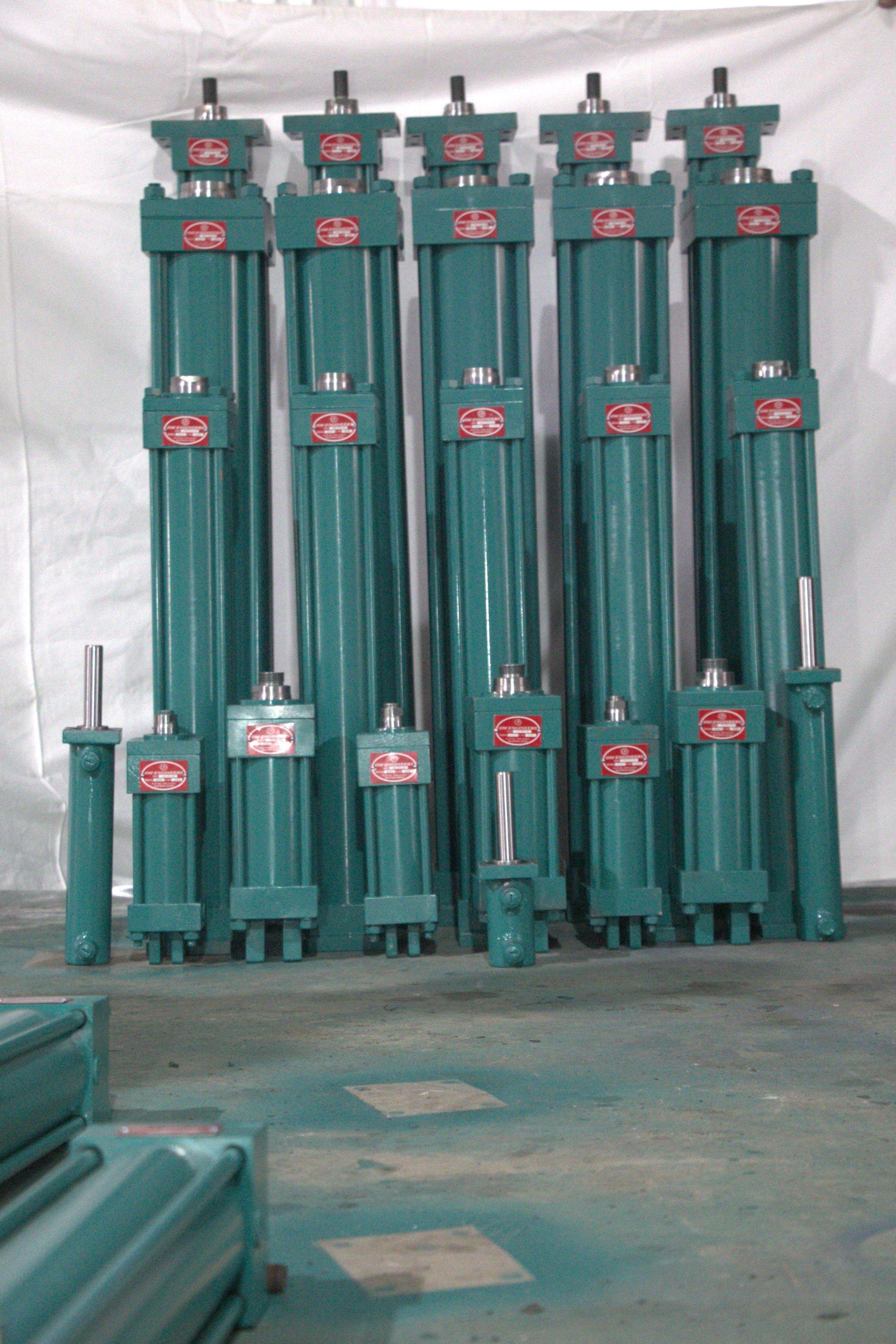

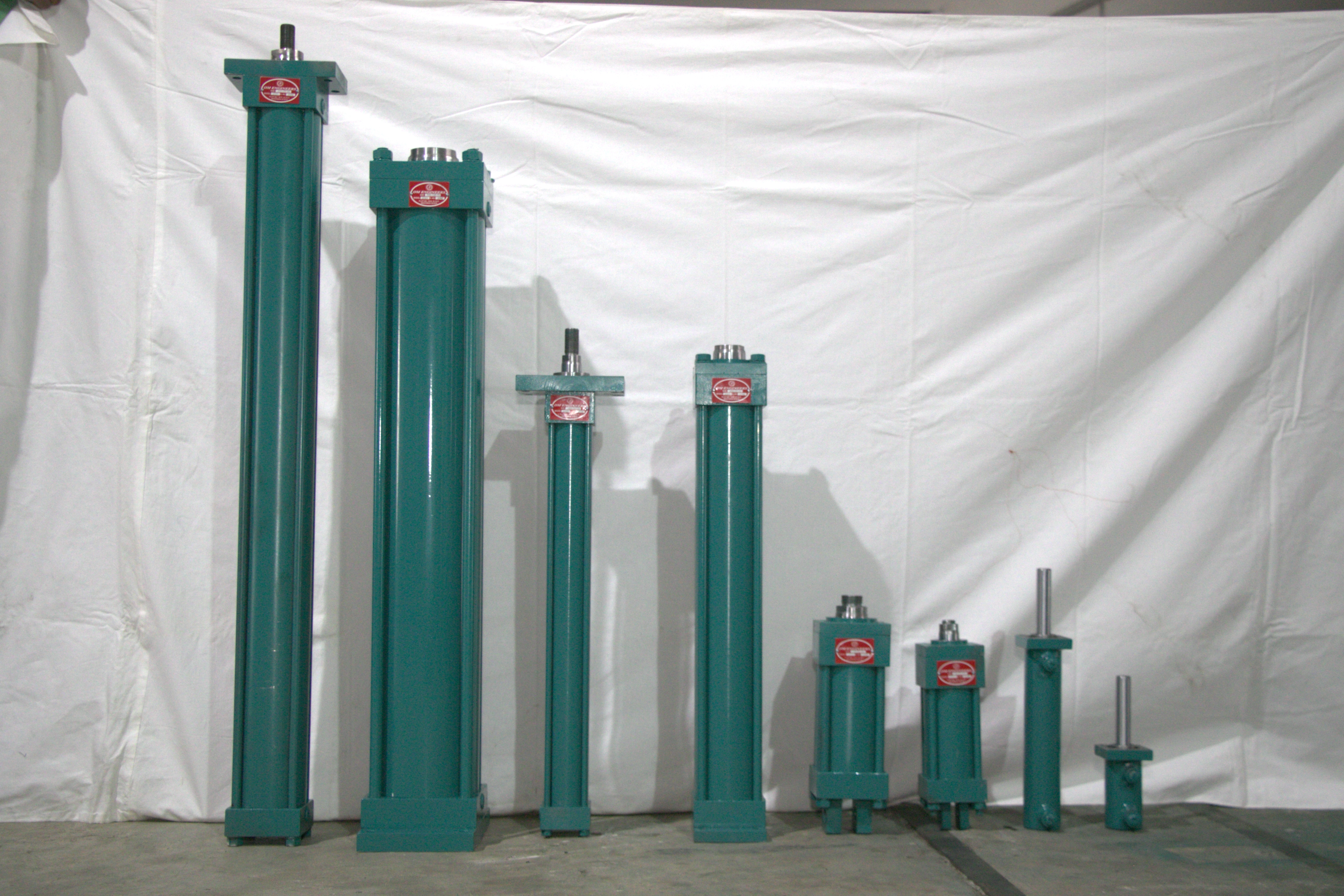

Hydraulic cylinder

Key highlights

Our manufacturing facility allows us to build hydraulic cylinders to your specifications.

• Capacity: up to 700 Bar and up to 500 Ton
• Stroking distance: up to 4 meters
• Speed: up to 1 m/sec
• Temperature: −54°C to 260°C; special cases up to 500°C
• Mounting styles (front / intermediate / rear): flanges, trunnion, clevis, shoe, pivot, side — custom options available
• Honed tube bore: up to 450 mm
• Piston rod size: up to 400 mm
• Piston rod end: threading / pin / step / plane
• Piston rod: ground and hard chrome plated
• Material: stainless steel, alloy steel, aluminium, brass, titanium
• Optional configurations: cushioning, non-return valves, check valves, air vents, spring return, safety valve — customisation available
• Cylinder tubes: plain with ports, welded oil tubes, one end plugged — customisation available
• Seals: compatible with a range of temperatures and fluids; we help select materials for your application
• All components CNC / VMC produced (subject to quantities)
