SPM machine

Automatic facing cut & center machines — PLC-controlled, built to reduce machining and handling time with precise flat finishing.

Overview

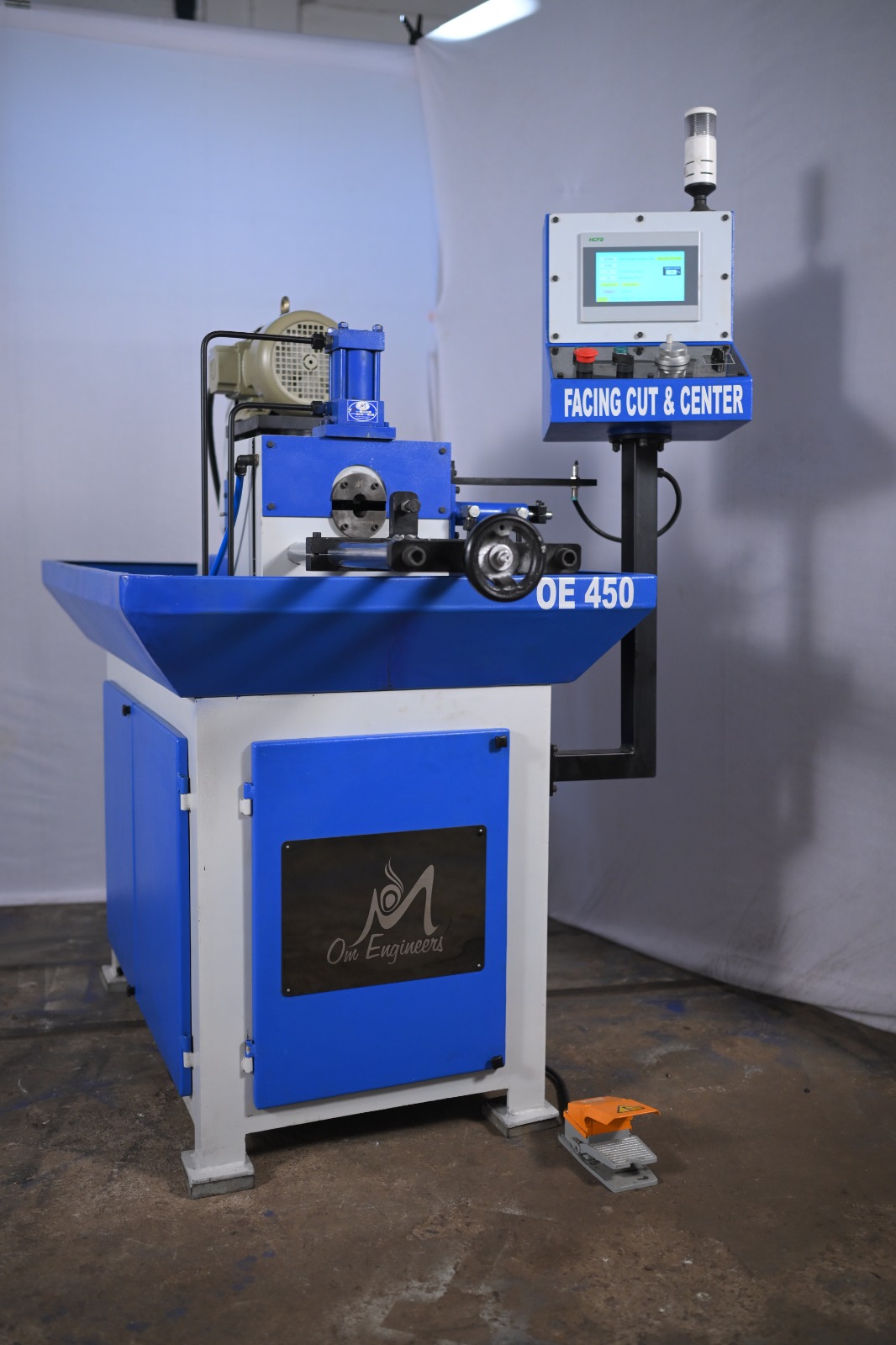

Automatic facing cut & center machine

Suited for production environments where combined facing and centering saves machining and handling time. Robust design for precise flat surfaces at high output, with PLC-based control.

Salient features

Depth of cut controlled via PLC
Low maintenance — extended tooling life
Fast production cycles

Product description

High-precision, PLC-controlled special purpose machine designed to reduce machining and handling time. Delivers fast, accurate flat surface finishing with robust performance for high-volume production.

Automatic facing cut & center machine — specifications

Model	OE-30	OE-45	OE-55
Shaft dia	8 mm to 30 mm	12 mm to 45 mm	12 mm to 55 mm
Servo motor	750 V	1 kW	1 kW
Coolant pump	0.15 HP	0.15 HP	0.15 HP
Hydraulic power motor	0.5 HP	0.5 HP	0.5 HP
Spindle motor	2 HP	3 HP	3 HP
System operating	PLC	PLC	PLC
Spindle RPM	750 to 1400 with AC drive	750 to 1400 AC drive	750 to 1400 AC drive
Weight	450 kg to 500 kg	500 kg to 650 kg	500 kg to 650 kg
Applicable material	MS, SS, copper, brass, etc.	MS, SS, copper, brass, etc.	MS, SS, copper, brass, etc.
Clamping type	Hydraulic with dia.	Hydraulic with dia.	Hydraulic with dia.
Min length	70 mm	70 mm	70 mm
